Hardware Video Processing for Complex Display Systems
GEOMETRY, LAYOUT, TIMING AND SYNCHRONISATION
Hardware Video Processing for Complex Display Systems
GeoBox® provides standalone, FPGA-based processing for multi-projector displays, LED walls, multi-source environments, video walls and professional 3D systems.
Built for system integrators and AV consultants working on complex display projects.
START WITH THE PROJECT REQUIREMENT
What Does Your Display System Need to Do?
Complex AV projects rarely begin with a processor model. They begin with a geometry, signal or operating requirement.

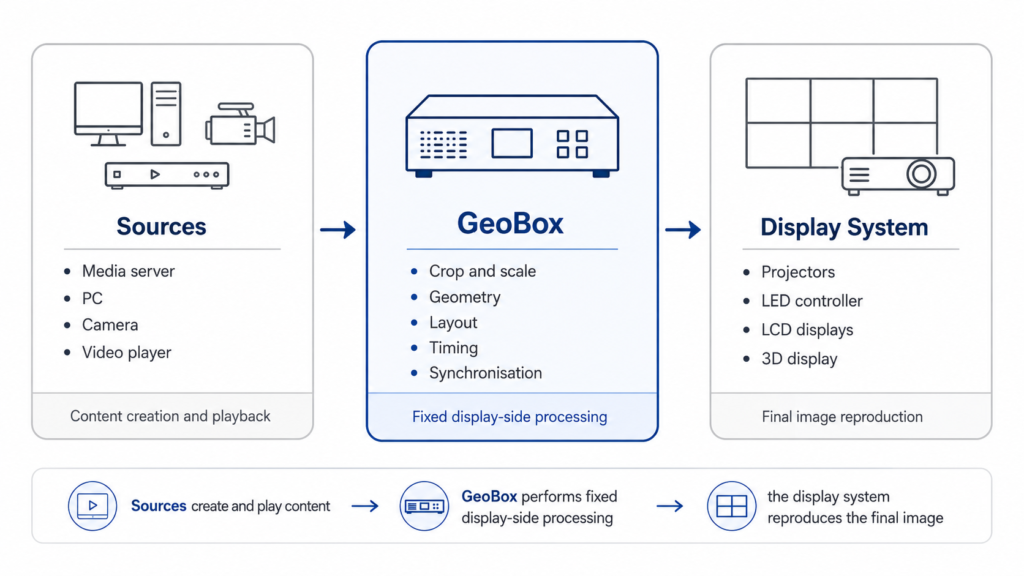

Keep Content and Display Processing Independent
GeoBox handles the display-side processing that must remain fixed and repeatable, including geometry, layout, timing and synchronisation.
- Geometry and edge blending
- Layout and image positioning
- Timing and synchronisation
This separation allows the source system to concentrate on content while the display configuration remains independently controlled.
WHY GEOBOX
Predictable Processing, Independent of the Operating System
Dedicated hardware keeps critical display processing independent from operating-system and application state.
FPGA-Based Processing
Video processing is implemented in dedicated hardware rather than an operating-system application.
Controlled Timing & Synchronization
GeoBox manages output timing, frame synchronisation and image behaviour close to the display system.
Repeatable System Behaviour
Once configured, the processing path remains fixed through normal source changes and system restarts.
Independent Configuration
Display geometry and layouts do not need to be rebuilt whenever content or source hardware changes.
GeoBox does not replace media servers, creative applications, playback systems or LED controllers. It performs the processing tasks that should remain independent from them.
APPLICATIONS BY MARKET
Designed for Different Operating Environments

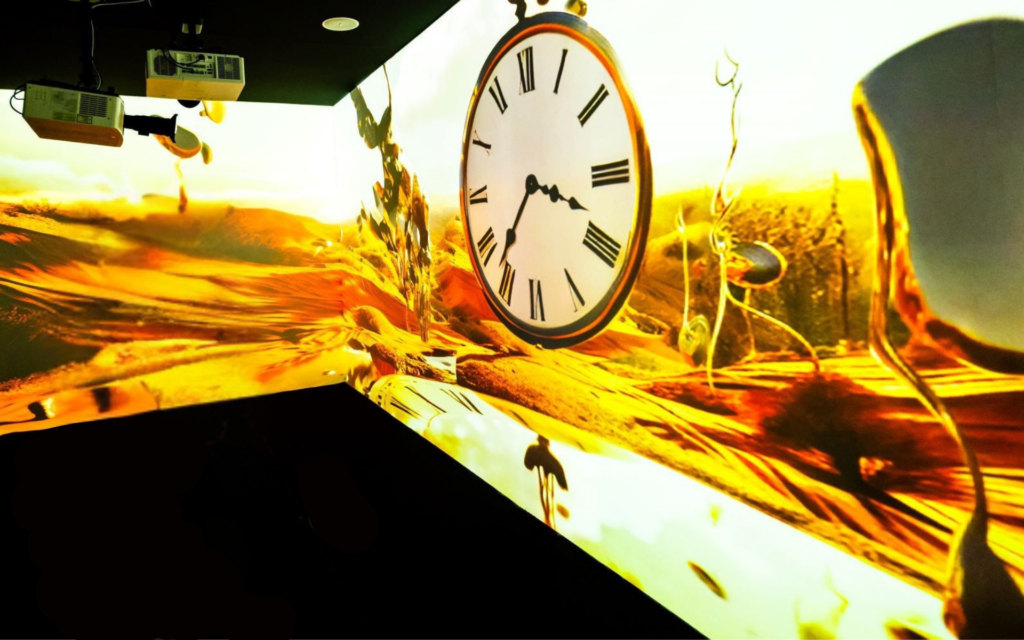

Immersive and projection-mapped installations often use changing content. GeoBox keeps geometry and display alignment independent from the media system.
GeoBox supports repeatable display layouts for teaching, simulation, observation and debriefing while source equipment and operating modes continue to change.
GeoBox manages geometry, timing and multiple source layouts for briefing rooms, collaboration spaces and other data-driven visual environments.
GeoBox stores display geometry and layouts for venues that require long operating hours, simple control and several predefined presentation modes.
How GeoBox Is Used in Real Systems
See how GeoBox is applied in complex display environment.
IMMERSIVE PROJECTION

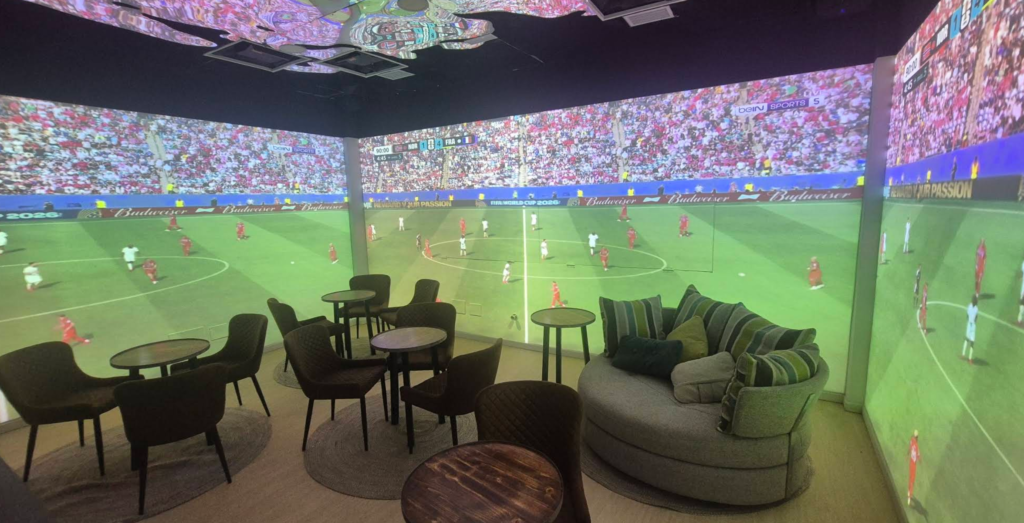

Immersive Sports Bar with Flexible Multi-Source Viewing
Six projectors operate either as one immersive canvas or as several independent viewing zones.
BROADCAST MONITORING
Three Camera Feeds on One Portrait Display
Three monitoring displays were replaced by one portrait screen showing three 4K camera feeds.
PROJECTION MAPPING

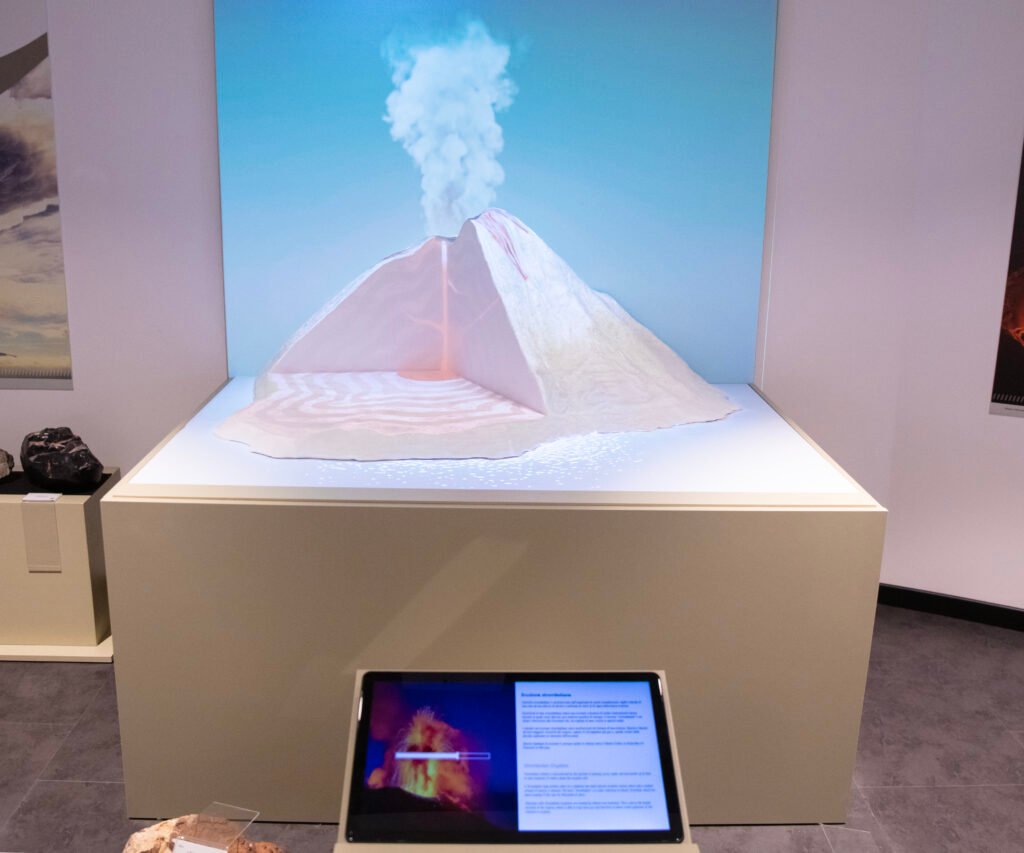

Standalone Geometry for an Irregular Object
Projectors were aligned across a three-dimensional surface without relying on PC-based mapping system.
FOR SYSTEM DESIGNERS
Technical Resources for Complex Display Projects
Resolution and connector specifications are only part of a professional display system.
Geometry, timing, synchronisation, latency, source behaviour and operational responsibility all influence whether the installation remains predictable after commissioning.
Explore practical articles, reference architectures, application notes and configuration guidance.
Knowledge Base
Application examples, configuration methods and answers to common project questions.
Reference Architectures
Example signal flows showing how GeoBox fits into different professional AV systems.
Tutorial Videos
Step-by-step demonstrations of GeoBox setup, geometry, blending and layout configuration.
MATRIXWORKS EUROPE
Project Support Beyond Product Supply
MatrixWorks Europe works with ProAV system integrators, consultants, distributors and professional users across Europe. We help determine where GeoBox fits within the signal chain and which processor or combination of processors is appropriate for the project.
We provide the following support:
- Product and model selection
- Signal-flow review
- Input and output format verification
- System architecture planning
- Configuration preparation
- Remote technical support
- Product and project training
- European logistics and after-sales support
Share your sources, display configuration and project requirements. We will help identify the appropriate GeoBox architecture.
