G900 series
4K/UHD Video Processing with Programmable Output Control
G901 · G902 · G904
1 / 2 / 4 UHD output channels · Programmable output timing · Low-latency hardware processing
One Processor. Multiple Display Architectures.
From High-Resolution Source to Display-Ready Outputs
Crop and distribute one high-resolution source across multiple UHD displays.
Create display-specific output resolutions and timings for non-standard LED canvases.
Crop, scale and synchronize content before projectors perform their own geometry correction and edge blending.
What G900 Does
Control How High-Resolution Content Reaches the Display
Crop, scale, rotate and distribute high-resolution content across video walls, LED canvases and projection systems — with independent control of output resolution, aspect ratio and synchronization.
Image Cropping & Distribution
Select the required region of a high-resolution source independently for each output channel.
The G900 Series can divide a larger canvas across multiple displays, crop the exact area required for each destination and compensate for bezel or overlap regions without modifying the original content.
Typical applications
- UHD LCD video walls
- Large-format LED canvases
- Multi-projector systems
- Portrait / landscape display combinations
- Multi-unit cascaded installations

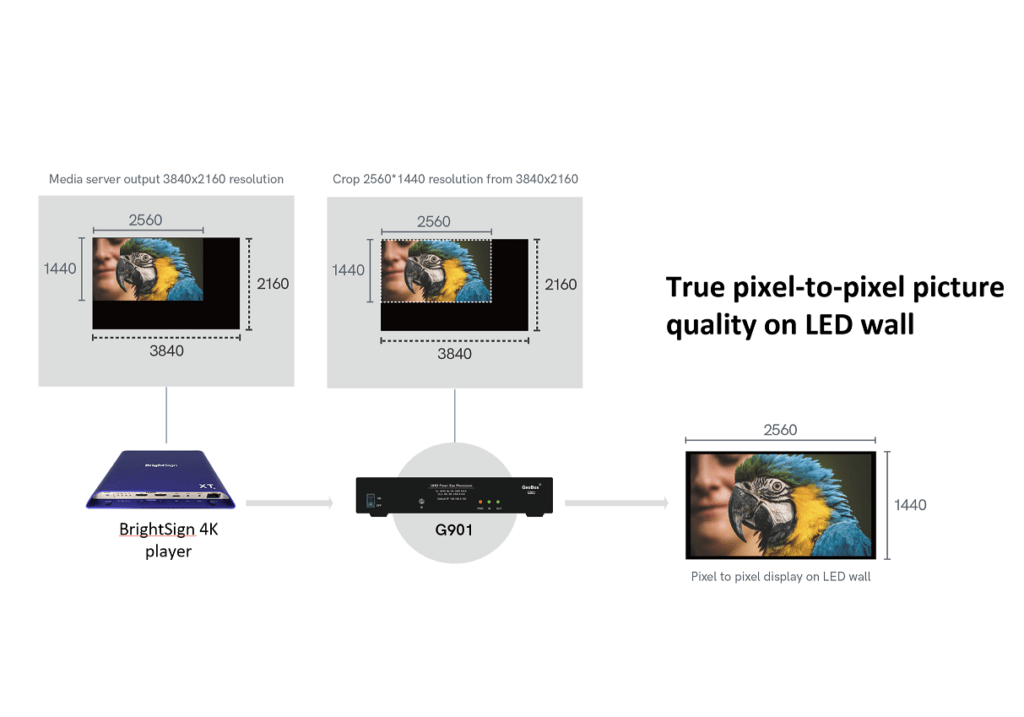

Programmable Output Resolution & Timing
Define output resolution and refresh timing according to the actual requirement of the downstream display or LED processor rather than relying only on standard VESA formats.
This is particularly useful for:
- dvLED canvases with non-standard resolutions
- Wide or narrow display surfaces
- Specialized projection systems
- 50 Hz installations
- Systems requiring optimized pixel-to-pixel mapping
The programmable range extends horizontally up to 7680 pixels and vertically up to 3840 pixels within the processor’s 600 MHz pixel-clock limit; achievable resolution and refresh-rate combinations depend on the total timing requirement.
Image Rotation & Aspect-Ratio Control
Adapt content without rebuilding it
Each processing channel can independently crop, scale and orient its image.
Supported image operations include:
- 90° / 180° / 270° rotation
- Mirror and flip
- Image position adjustment
- Scaling
- Flexible aspect-ratio adjustment
- Up to ±1800-pixel adjustment on each image edge
This makes the G900 Series suitable for portrait displays, mixed-orientation video walls and canvases whose physical aspect ratio does not match the source format.

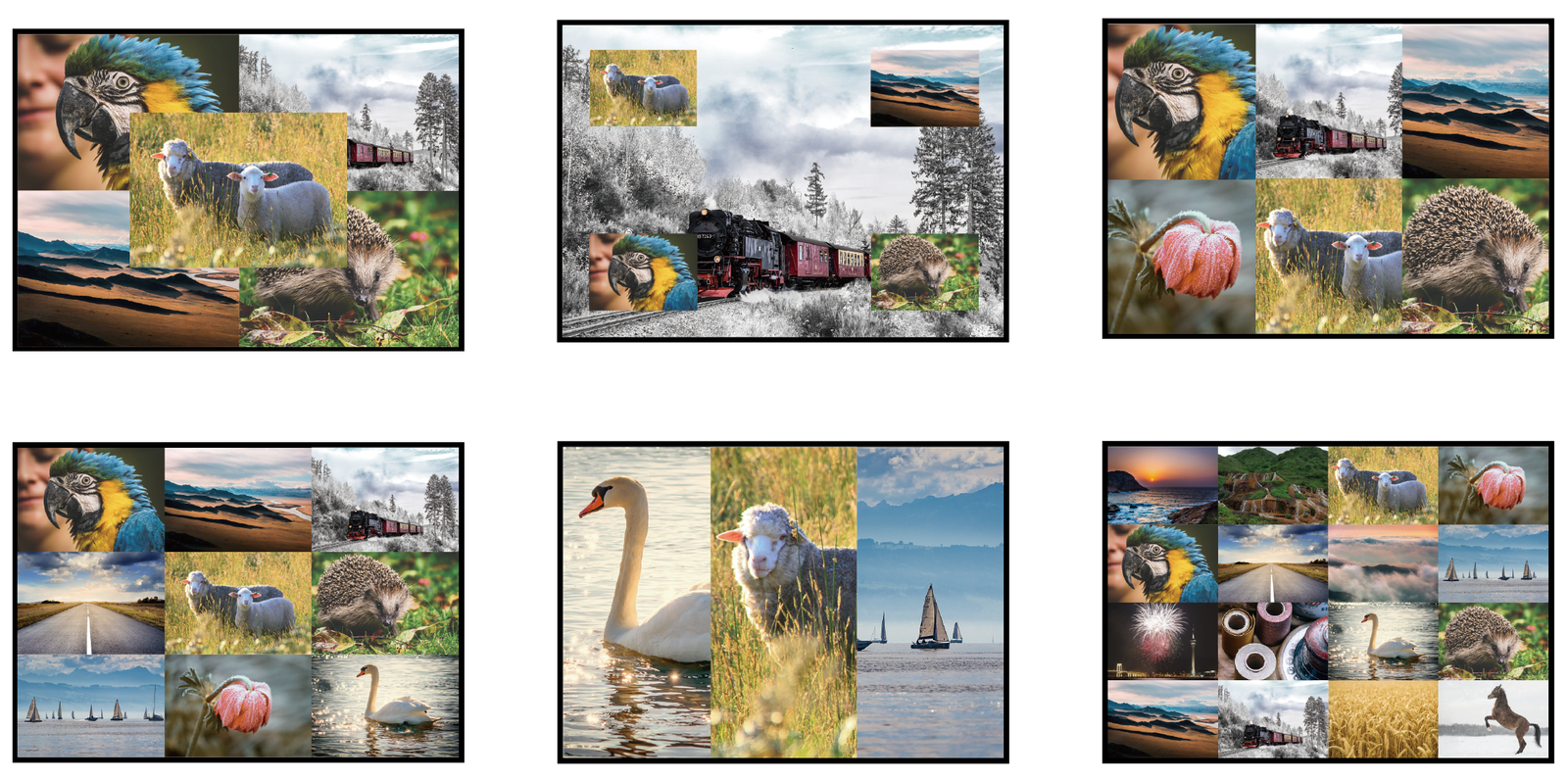

PIP, POP & Multi-View Processing
Combine additional sources directly inside the processor without introducing a PC-based compositing workflow.
PIP and POP are available across the G900 Series, with predefined split-view configurations for applications requiring multiple source images on one or more displays.
Main and sub-images can be independently cropped, scaled, rotated and positioned.
Model capability
- G901: up to 4 source windows
- G902: up to 5 windows across two displays
- G904: up to 7 images on one UHD display, or up to 10 windows across four displays
For applications requiring fully free-positioned multi-source windows and dynamic layering, consider the S902 instead.

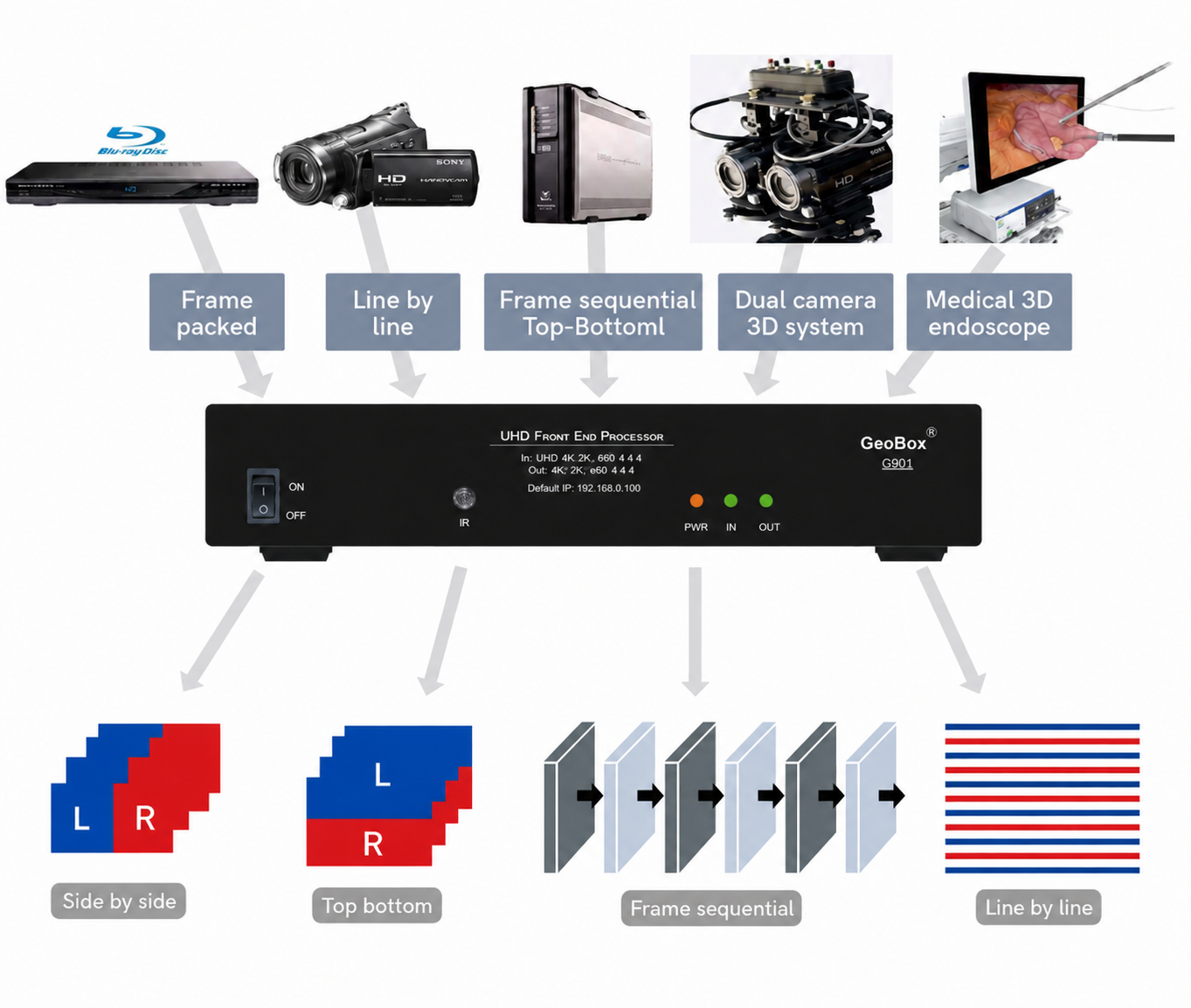

3D Format Conversion
Adapt specialist 3D formats to the display
The G900 Series includes professional 3D decoding and format-conversion functions for active and passive 3D applications.
Supported workflows include conversion between formats such as:
- Side-by-side
- Top / bottom
- Frame sequential
- Frame packed
- Line interleaved
- Dual-camera / discrete left-right signals
The processor can also decode left- and right-eye images for passive 3D display architectures.
Source Switching
Maintain a stable output while sources change
G901 can operate as a five-input / one-output UHD source switcher while maintaining continuous output to the downstream display.
This avoids unnecessary downstream display re-synchronization when operating modes or sources change.
Video Performance
High-Resolution Processing without PC-Based Rendering
4K60 & Ultra-Wide Input
Process UHD / DCI 4K signals at up to 60 Hz, with HDMI input support for ultra-wide formats up to 7680 × 2160 @ 30 Hz.
G901 additionally provides DisplayPort 1.4 inputs supporting formats up to 7680 × 4320 @ 30 Hz.
RGB 4:4:4 Processing
Full-color 4:4:4 processing preserves fine text, graphics and detailed image information required in professional AV, visualization and data-display applications.
10-Bit Video Processing
10-bit processing, high-quality scaling and motion-adaptive de-interlacing maintain image quality through scaling and format conversion.
HDR & BT.2020 Input Processing
HDR10 / BT.2020 source signals can be detected and processed, with controlled SDR RGB 4:4:4 output for professional display systems.
Engineering Features
Designed for Fixed AV Infrastructure
Frame Synchronization
Synchronizes outputs to maintain stable timing across multi-display installations and reduce visible timing differences between display channels.
Profile Saving & Recall
Store up to 10 complete system configurations for applications requiring different operating modes, source layouts or display configurations.
Programmable EDID
Configure EDID settings to manage source compatibility and define the preferred input format for different system requirements.
Custom Output Timing
Define custom output resolution and timing when the display requires a non-standard format, including dvLED applications and projector systems operating at 50 Hz.
GCT PC Tool
Configure G901, G902 and G904 through the GeoBox PC control environment for system setup and commissioning.
External Control
Integrate GeoBox functions with third-party control systems for remote operation, preset recall and system automation.
Typical System Architecture
Separate the Source Canvas from the Display Layout
A high-resolution source provides the complete content canvas.
The G900 Series then crops, scales and formats the required image region independently for each output, allowing the display architecture to be changed without rebuilding the source content.
With G902 and G904, HDMI loop-through allows the common source signal to be passed to additional G900 processors as the number of display outputs increases.
For projection systems: when the projectors already provide sufficient geometry correction and edge blending, G900 can operate upstream to perform image cropping, distribution, scaling, custom output timing and synchronization, leaving the final geometric alignment to the projectors.
G900 Series Models
Choose the Output Count for the System
G901
OUTPUT
Best for
Best for front-end processing, programmable output timing, specialist conversion and single-output applications.
€2,250
Recommended End-User Price · excl. VAT
G902
OUTPUTS
Best for
Best for dual-display UHD processing and systems requiring two independently cropped outputs from one high-resolution canvas.
€3,500
Recommended End-User Price · excl. VAT

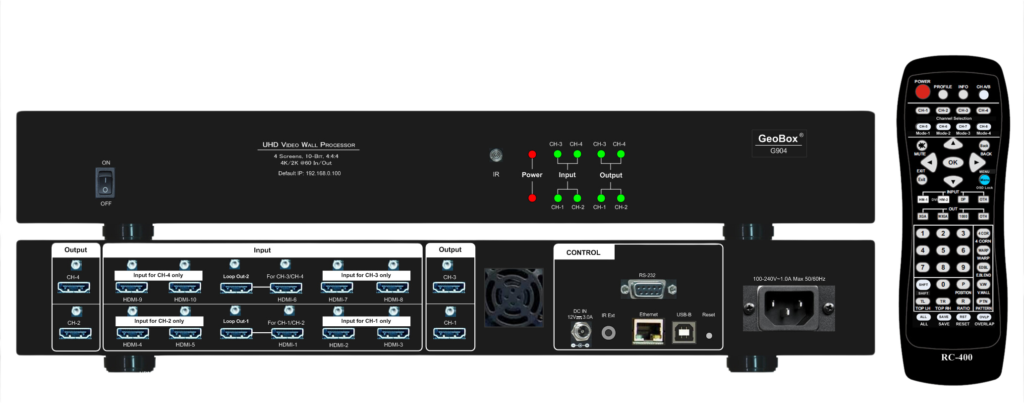

G904
OUTPUTS
Best for
Larger UHD video walls, LED canvases and multi-projector systems requiring four independently processed outputs.
€5,000
Recommended End-User Price · excl. VAT
Larger display systems can be built by combining multiple G900 Series processors while maintaining synchronized outputs across the system.
Technical Specifications
Detailed signal, processing, control and mechanical specifications for system design and integration.
Video Input
2 × DisplayPort 1.4
Up to 7680 × 2160 @ 30 Hz
Video Output
1 × HDMI loop output
2 × HDMI loop outputs
Selectable 8-bit / 10-bit
DisplayPort on G901: HDCP 2.2
Image Processing
Up to 10 windows across four displays
System & Control
Mechanical
10–90% RH
Choose G900 When
- The display requires UHD / 4K output
- One high-resolution canvas needs to be divided across multiple displays
- A dvLED canvas requires optimized pixel-to-pixel output
- Displays are installed in portrait or mixed orientations
- Independent image cropping and scaling is required
- The output requires a custom resolution or refresh timing
- PIP / POP or predefined MultiViewer layouts are required
- The projectors already provide their own geometry correction and edge blending
Consider Another GeoBox
Need Geometry Correction & Edge Blending?
M810 Series
Choose M810 when the GeoBox itself needs to perform geometry correction and edge blending for Full HD / WUXGA projector systems.
Best for: mainstream immersive projection and multi-projector installations.
Explore M810→
Need 4K Geometry Correction & Edge Blending?
UD100 Series
Choose UD100 when UHD output, advanced geometry correction and edge blending need to be handled inside the GeoBox processor.
Best for: premium 4K immersive projection and high-resolution multi-projector systems.
Need Full-HD / WUXGA Outputs Instead?
G400 Series
Choose G400 when the display system requires multiple Full HD / WUXGA outputs rather than UHD output channels.
Best for: higher-channel-count Full-HD video walls and display distribution systems.
Need Fully Flexible Multi-Source Layouts?
S902
Choose S902 when the primary requirement is to freely position, resize and layer multiple independent sources rather than distribute a single large source canvas.
Best for: presentation systems, control rooms and dynamic multi-source display layouts.
Explore S902→
G900 in Real Installations
BROADCAST | NETHERLANDS
Three Camera Feeds on One Portrait Multiview Display
A G901 combines three live camera feeds into a vertical multiview display inside an SNG shader room, replacing three separate monitors while preserving low-latency, high-quality signal processing.
MEDICAL 3D | AUSTRIA
3D Visualization for Neurosurgical Research & Education
GeoBox G900 processing converts specialist medical 3D formats into display-compatible stereoscopic formats, allowing 3D content to be used across research, collaboration and teaching environments.
Technical Resources
Planning a G900 System?
Share your source resolution, display configuration and required output format. We can help confirm the appropriate model and system configuration.
